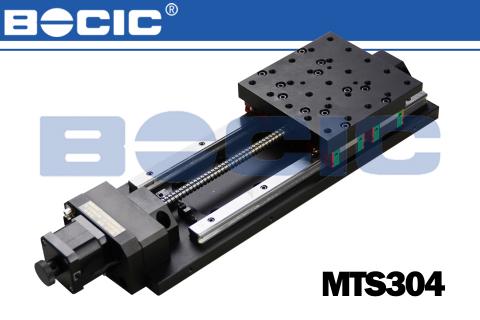

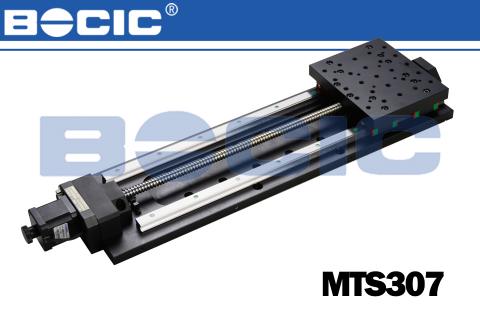

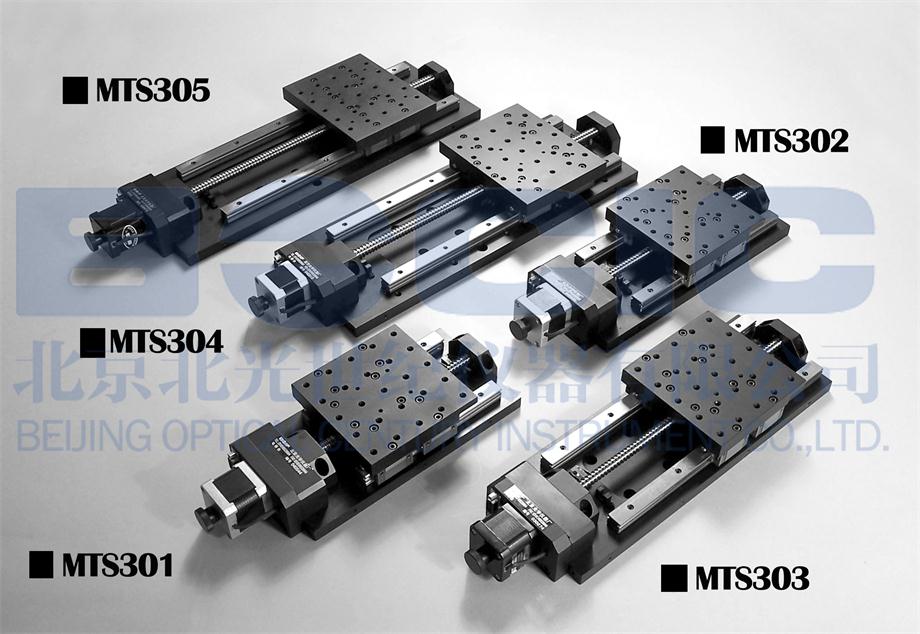

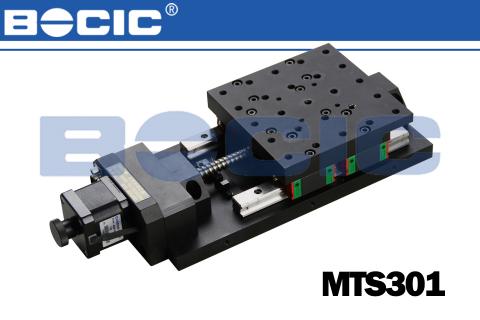

MTS300 series motorized translation stages
1.Actuated withball
screw,linear ball bearing and guides.
2.Normalprecision ,large bearing capacity.
3.Additional dust cover is available.
4.Controller usesstandard RS232 interface
5.Zero position photoelectric switch is
included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.
6.Additional
power-off protector is available for vertical operation.
7.Can operate in vacuum environment
after necessary modification.
- description
- parameters
|

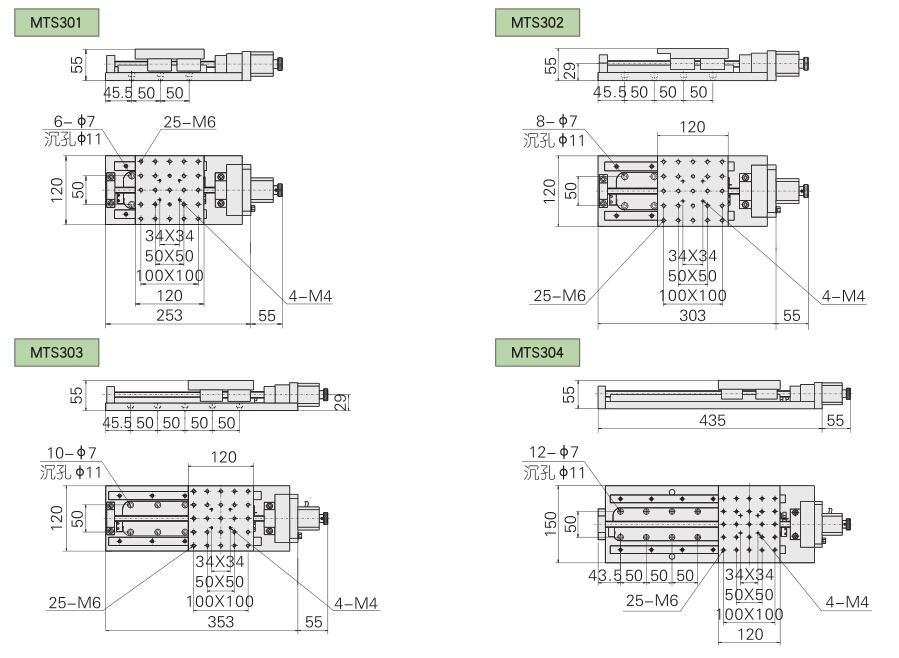

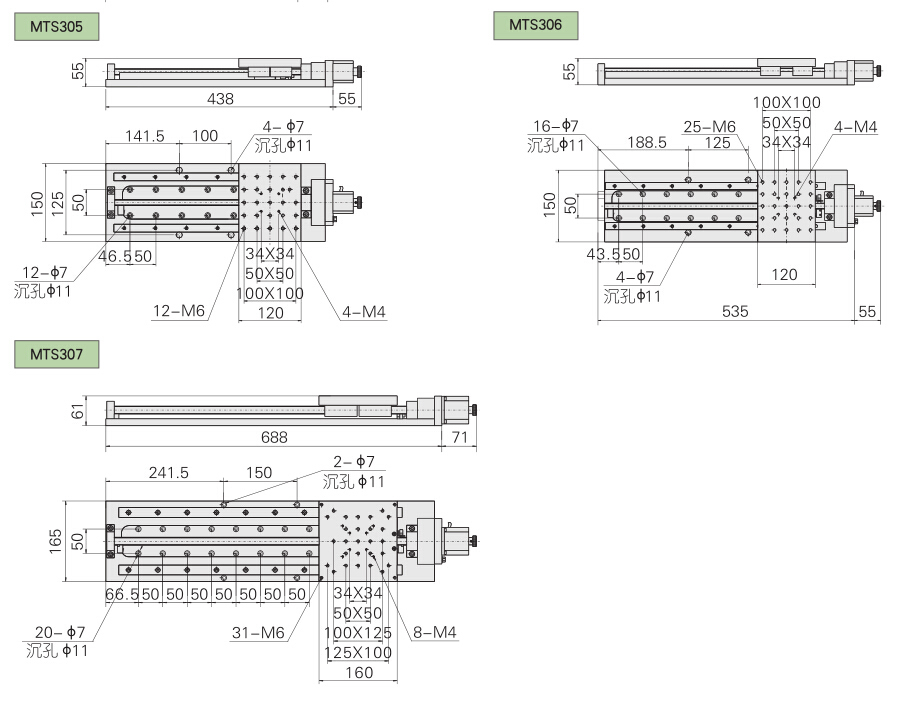

Model |
MTS301 |
MTS302 |
MTS303 |
MTS304 |
MTS305 |
MTS306 |
MTS307 |
|
|
Travel（mm） |
50 |
100 |
150 |
200 |
250 |
300 |
400 |
|
|
Table size (mm） |
120×120 |
120×120 |
120×120 |
150×120 |
150×120 |
150×120 |
165×160 |
|
|
Guides |
Linear guides |
|||||||
|
Screw pitch（mm） |
4 |
5 |
||||||
|
Resolution（mm） |
0.00032 |
0.00039 |
||||||
|
Maximum speed (mm/s) |
20 |
40 |
50 |
|||||
|
Resetting positioning accuracy (mm） |
＜0.005 |
|||||||
|
Axial clearance (mm） |
＜0.02 |
|||||||
|
Stepper motor（1.8°） |
56 stepper motor |
|||||||
|
40 |
50 |
80 |
||||||
|
Loading capacity(kg) |
20 |
30 |
50 |
|||||
|
Weight（kg） |
3.4 |
3.8 |
4.1 |
5.5 |
5.8 |
6.3 |
11.5 |
|
|
Comment |
The product can be used in vacuum environment and increase dust cover，but you need to have it made to order. |
|||||||
