current location:Home>Products>Motion Control>Translation Stages

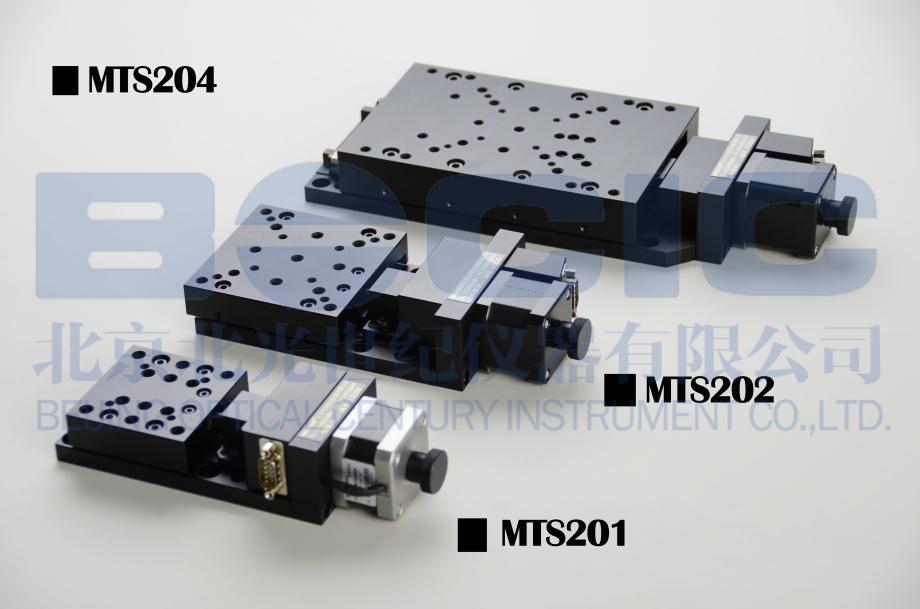

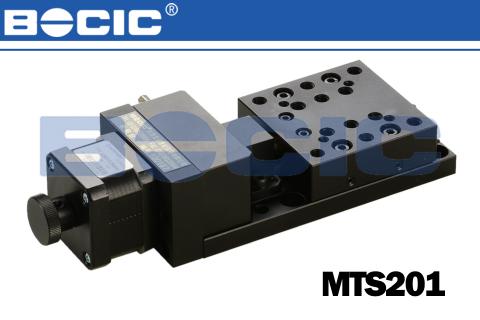

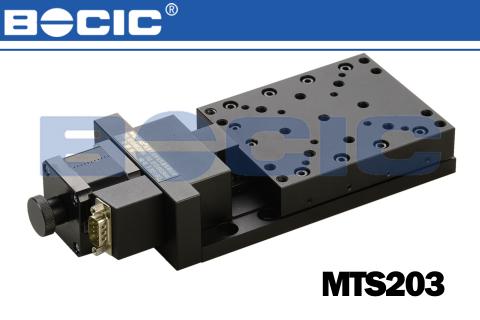

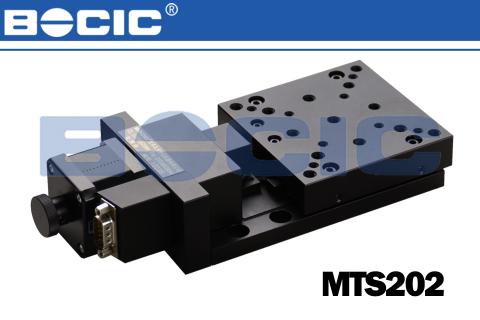

MTS200 series thin design motorized translation stages

    1.Actuated with high precision cross ball screw rail.

    3.Controller usesstandard RS232 interface

    4.Zero position photoelectric switch is included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.

    5.Can be used in vacuum environment after necessary modification.


  • description
  • parameters

MTS220 series thin design motorized translation stages






1.Actuated with high precision cross ball screw rail.

3.Controller usesstandard RS232 interface

4.Zero position photoelectric switch is included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.

5.Can be used in vacuum environment after necessary modification.



Related Products

STEPPER MOTOR CONTROLLERS        MOTORIZED POSITIONING UNITS



Model

MTS201

MTS202

MTS203

MTS204

Travelmm

15

30

50

100

Table size (mm

65×65

90×90

90×110

115×180

Guides

V shape guidescross roller bearing guides

Screw pitchmm

0.5

1

Resolutionmm

0.000039

0.000078

Maximum speed (mm/s)

10

Resetting positioning accuracy (mm

0.003

Axial clearance (mm

0.005

Stepper motor1.8°)

42 stepper motor

Maximum static torque (Ncm)

40

Loading capacity(kg)

10

12

Weightkg

0.8

1.3

1.5

2.8

Comment

The product can be used in vacuum environmentbut you need to have it made to order.
