current location:Home>Products>Motion Control>Translation Stages

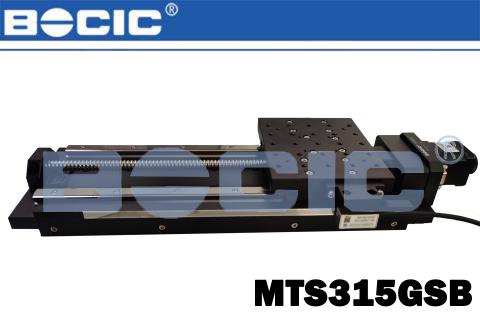

MTS310GSB series motorized precision translation stages



      1.Actuated withhigh precisionball screw andlinear guides

      2.Highprecision,large bearing capacity
      3.The controller uses standard RS232 interface
      4.Zero position photoelectric switch is included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.

      5.Additional power-off protector is available for vertical operation.

      6. Installing domestic grating ruler to achieve closed-loop control




  • description
  • parameters

MTS310GSB series motorized precision translation stages

    1.Actuated withhigh precisionball screw andlinear guides

    2.Highprecision,large bearing capacity
    3.The controller uses standard RS232 interface
    4.Zero position photoelectric switch is included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.

    5.Additional power-off protector is available for vertical operation.

    6. Installing domestic grating ruler to achieve closed-loop control

Model

MTS311

GSB

MTS312

 GSB

MTS313

 GSB

MTS314

 GSB

MTS315

GSB

MTS316

 GSB

MTS317

GSB

Travelmm

50

100

150

200

250

300

400

Table size (mm

120×120

120×120

120×120

150×120

150×120

150×120

165×160

Guides

Linear guides

Screw pitchmm

4

5

grating scale resolutionmm

0.0001

Maximum speed (mm/s)

20

40

50

Axial clearance (mm

0.005

Stepper motor1.8°)

42 stepper motor

56 stepper motor

Maximum static torque (Ncm)

40

50

170

Loading capacity(kg)

20

30

50

Weightkg

3.4

3.8

4.1

5.5

5.8

6.3

11.5
