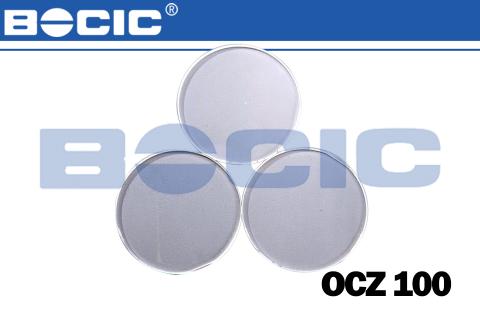

OCZ100 series polarization beamsplitter plate

1. Split the S beam and P beam

2. Brewster angle of incidence

3. Suitable for high power apolication

4. RoHS Compliant

1. Material: K9 optical glass

2. Dimension Tolerance: +0.0/-0.2mm

3. Thickness Tolerance: ±0.2mm

4. Surface Quality: 60/40

5. Clear Aperture: >90%

6. Parallelism: <3 arc minutes

7. Flatness: λ/[email protected] per 25mm

8. Extinction Ratio: >100:1

9. Transmission: Tp>95%, Ts<0.5%

10. Reflection: Rs>99.5%, Rp<5%

11. Coating: AOI 56.5deg (Should be tuned to optimized AOI in use), one surface coated, rear surface uncoated

12. Damage Threshold:  >5J/cm2
